Description

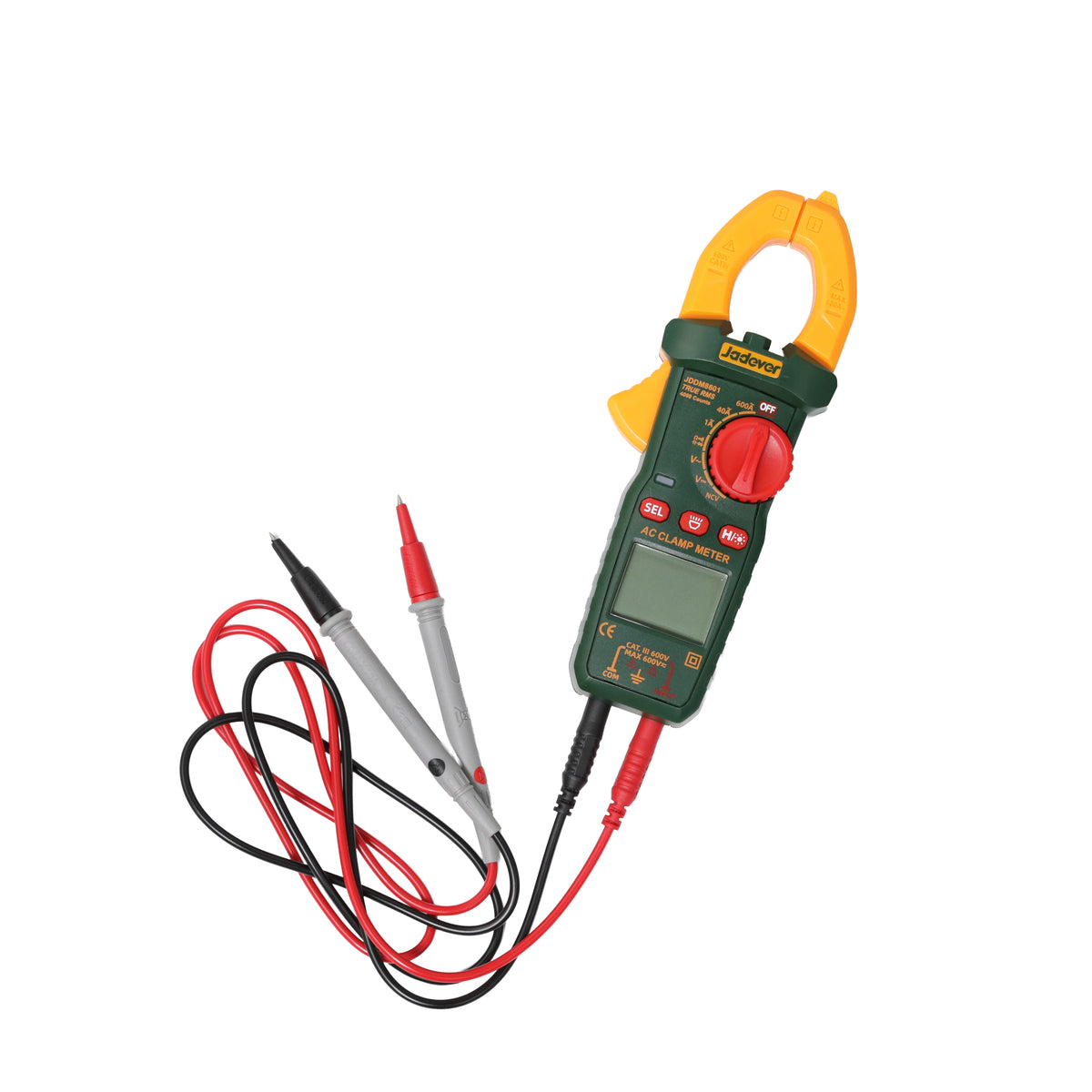

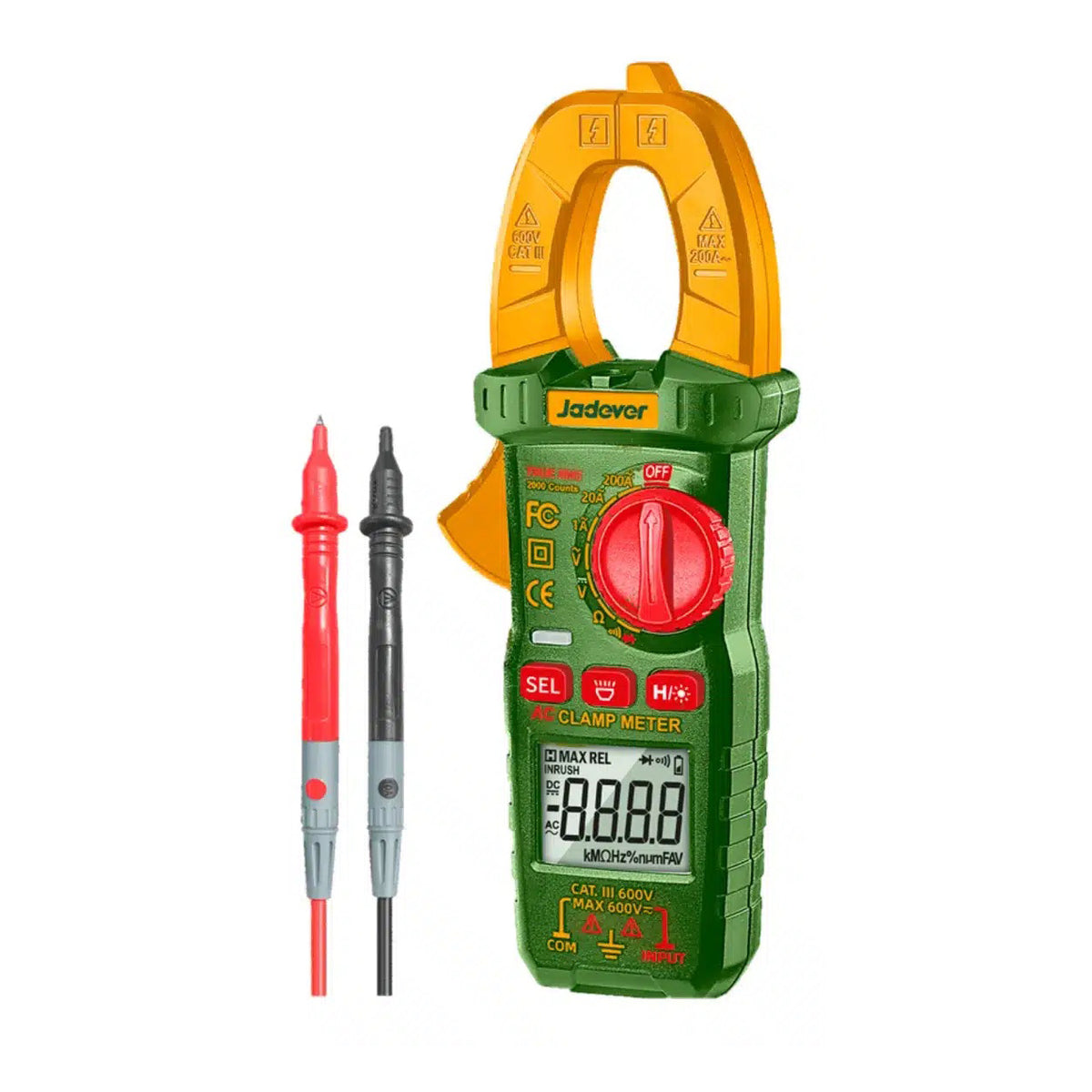

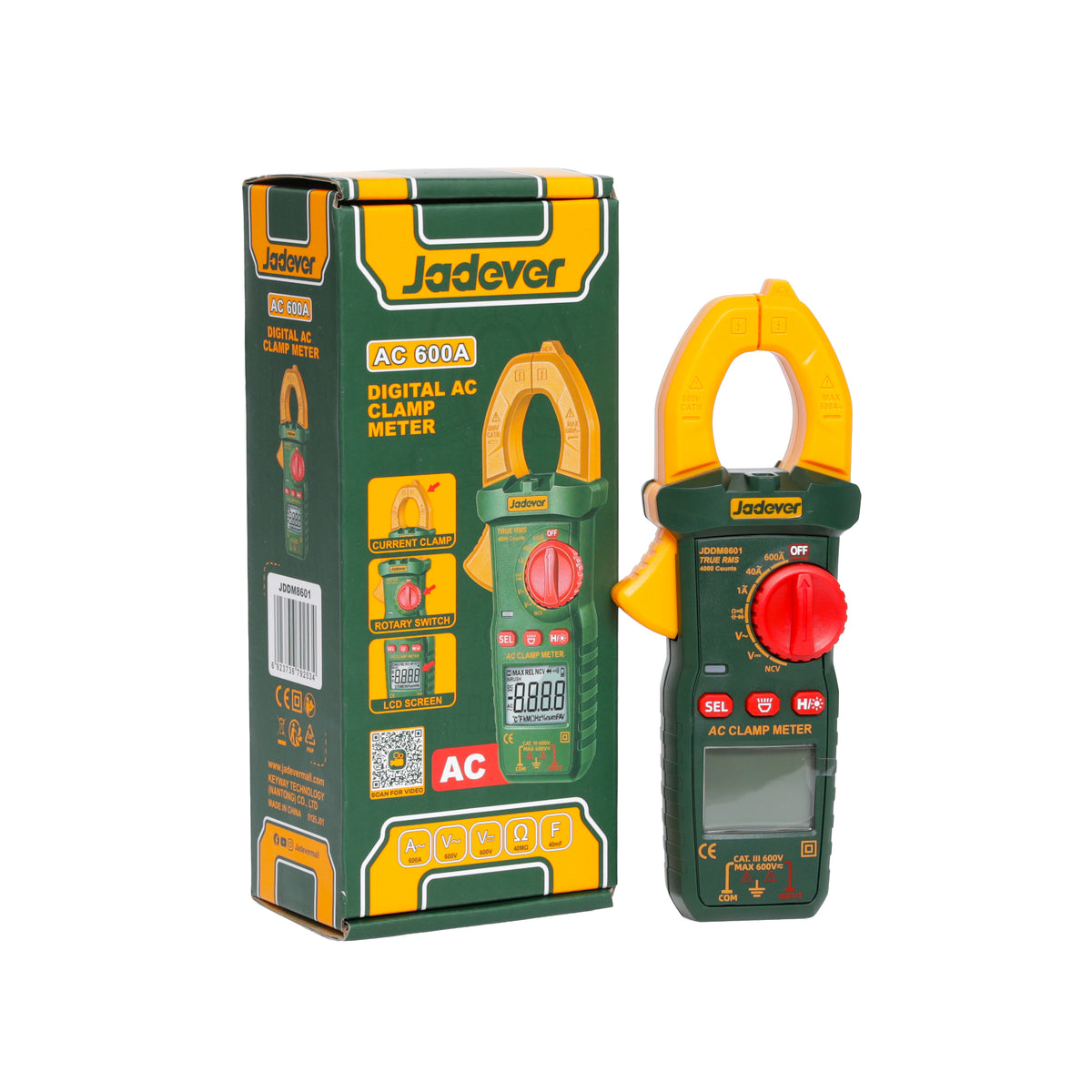

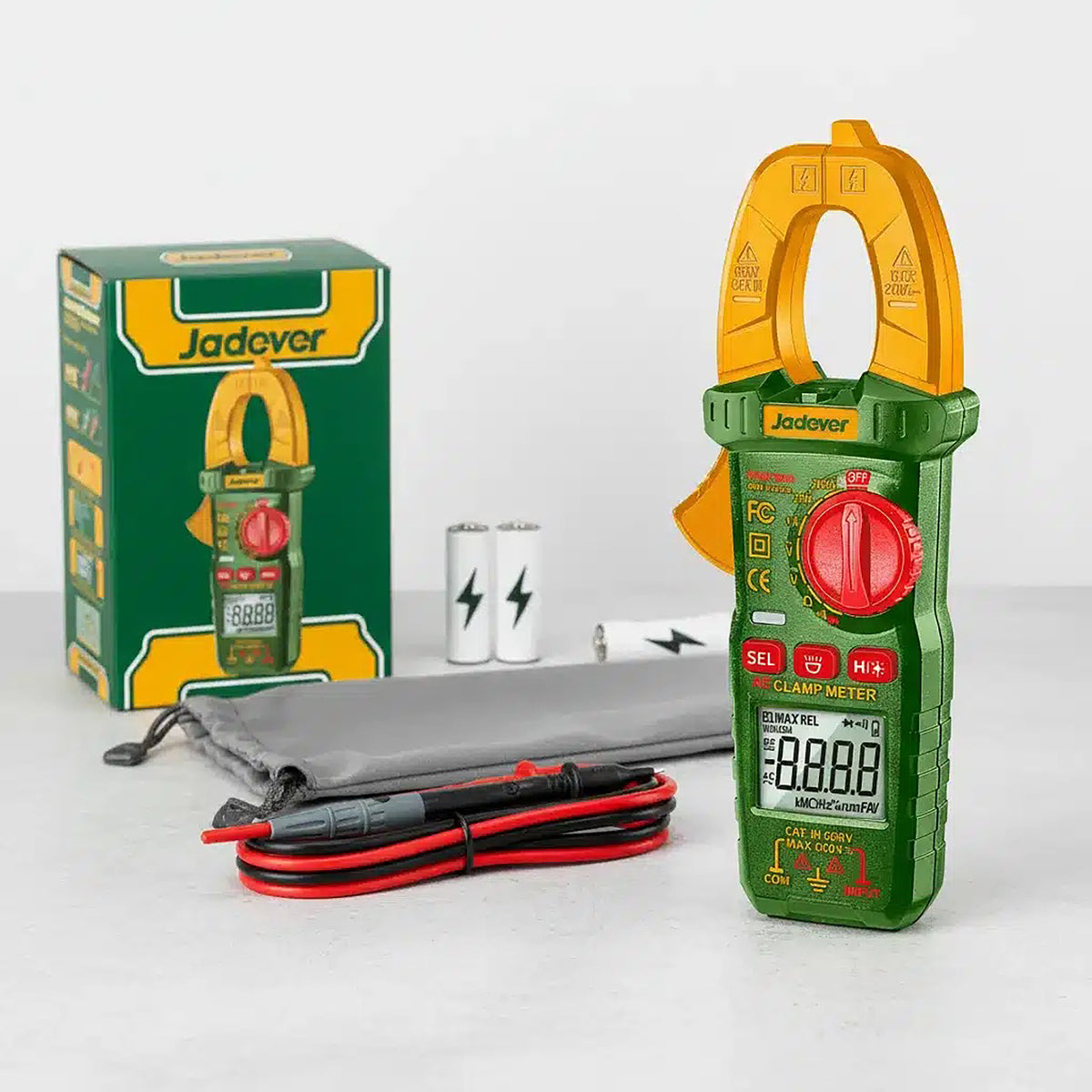

A high-capacity True RMS AC clamp meter with 4000‑count backlit LCD display, suitable for professionals needing accurate measurement of high AC currents up to 600 A. Also measures AC/DC voltage, resistance, capacitance, frequency, and diode testing. Includes built-in flashlight, data hold, auto power-off, and packaged with 2 × AAA batteries.
Key Features:
- 4000‑count True RMS backlit LCD for clear, accurate readings
- Measures AC current: 1 A / 40 A / 600 A ranges
- Voltage measurement AC/DC up to 600 V: AC ranges 4 V/40 V/600 V; DC ranges up to 600 V
- Resistance up to 60 MΩ, capacitance up to 60 mF, frequency testing, and diode test
- Built-in flashlight and backlight enhance usability in low light
- Functions include NCV, data hold, auto power-off, low battery indication
Specifications:
| Specification | Value |
|---|---|
| Display | 4000‑count backlit LCD |
| AC Current Ranges | 1 A / 40 A / 600 A |
| AC Voltage Ranges | 4 V / 40 V / 600 V |
| DC Voltage Ranges | 6 V / 60 V / 600 V |
| Resistance | Up to 60 MΩ |
| Capacitance | Up to 60 mF |
| Frequency Range | Yes |
| Diode Test | Yes |
| Flashlight | Yes |
| NCV (Non‑Contact Voltage) | Yes |
| Data Hold | Yes |
| Auto Power‑Off | Yes |
| Low Battery Indicator | Yes |
| Power Requirements | 2 × LR03 AAA batteries |
| Packaging | Colour box |
