| Power Supply |
Via satellite receiver 13-18Vdc, 60mA |
| Input | 2 x Sat |
| Output | 2 x Mix |
| Frequency Range | UHF 470-790MHz |
| Gain | 27dB |
| Impedance | 75 Ω |
| Insertion loss | 3dB |
| Satellite Pass Band | 950-2150MHz |
| Dimensions | 300 x 100 x 180mm |
Description
MAUHF-A27

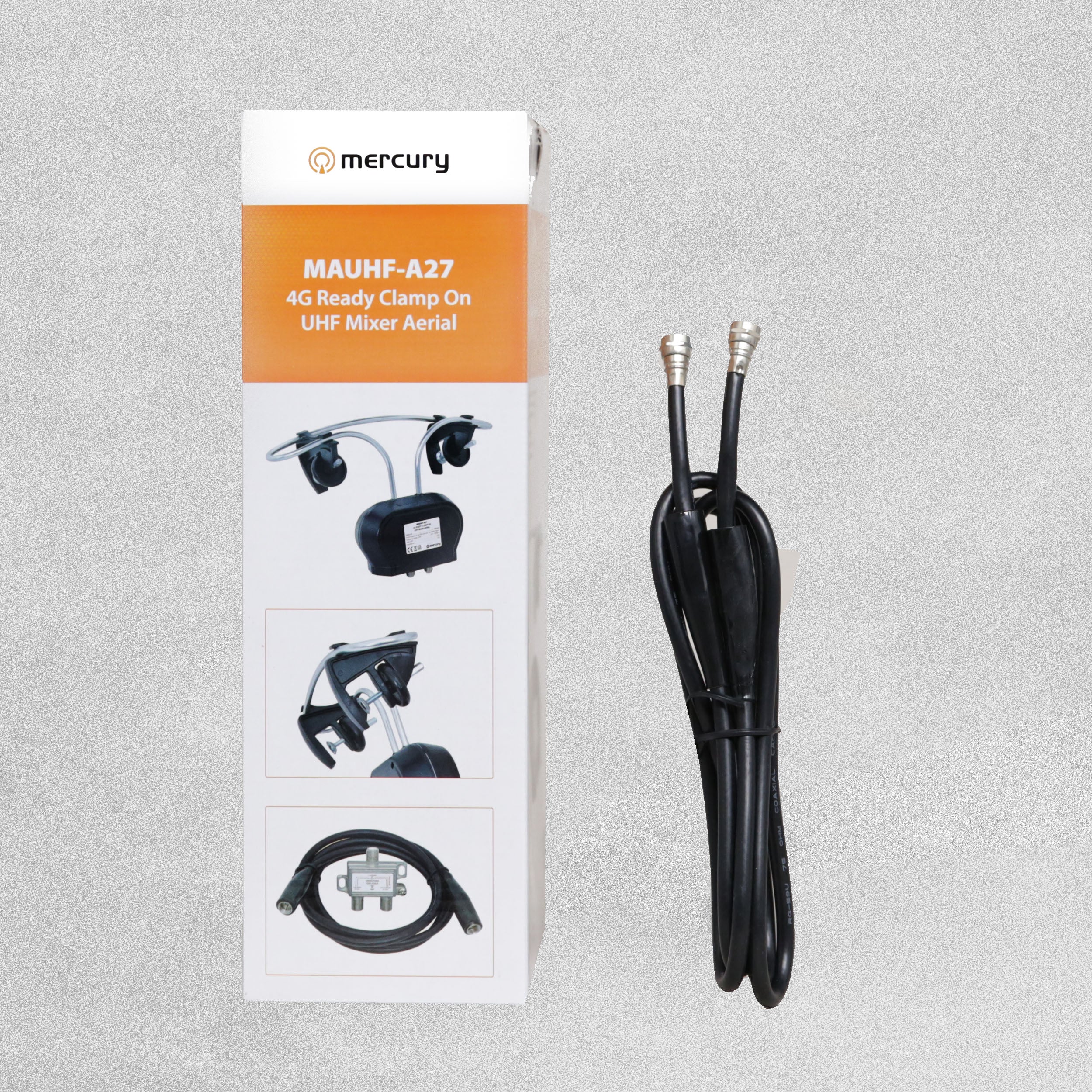

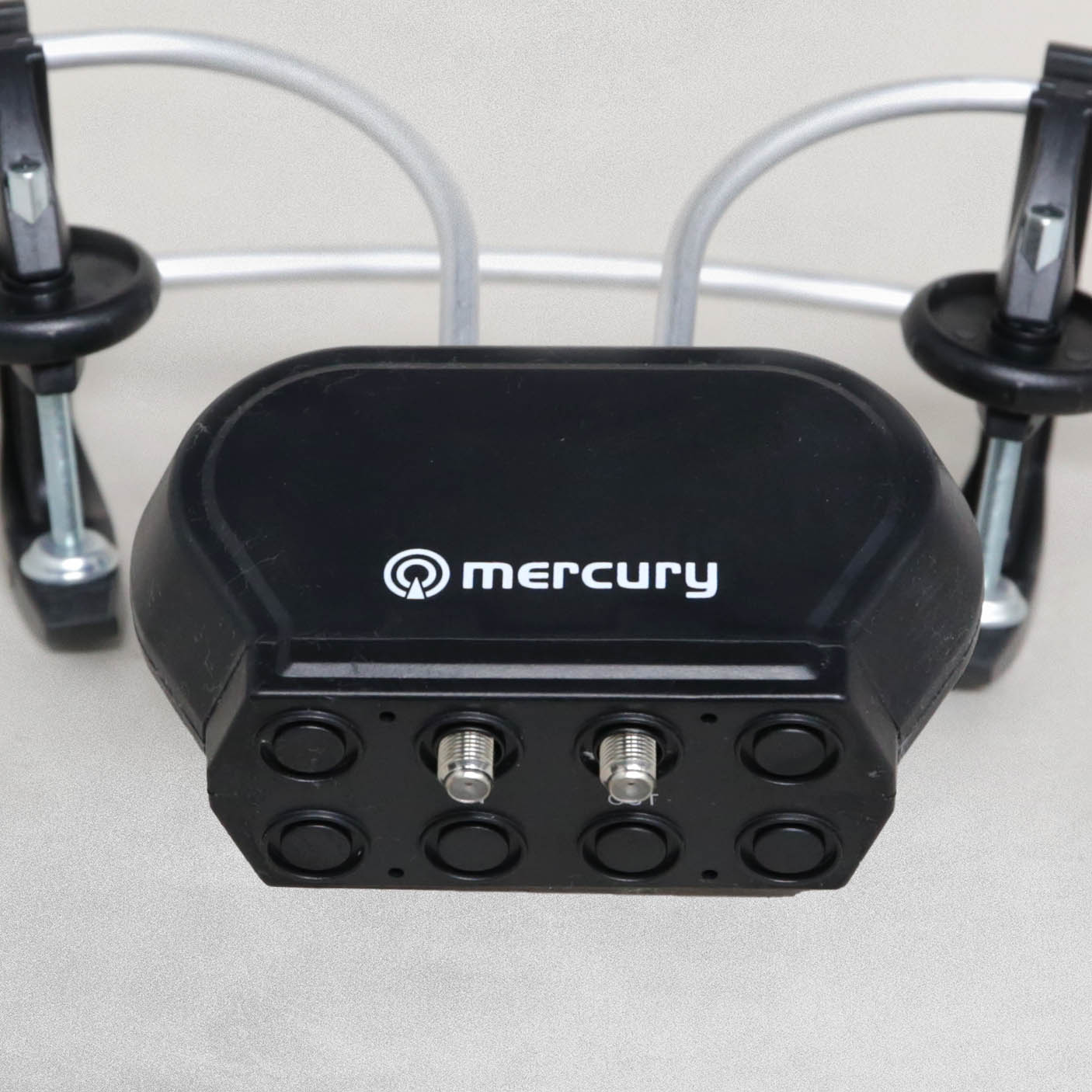

An advanced wideband aerial with 4G LTE filter designed to clamp onto a satellite dish. The built in signal mixer transmits both TV and satellite signals down a single cable, then at the end of the cable run a diplexer separates the TV and satellite signals.
- Designed to mount on a satellite dish
- Compatible with both analogue and digital TV reception
- Integrated LTE signal filter avoids interference and channel loss
- Supplied with diplexer decoder to separate TV and satellite signals
- Supplied with 1.0m F plug to F plug lead
- Input: 1 x Sat
- Output: 1 x Mix
Technical Data
